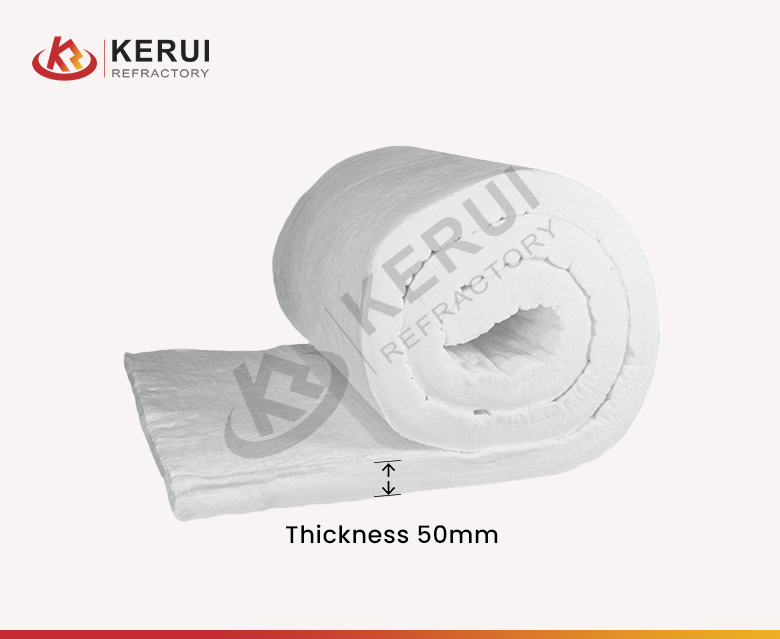

Ceramic fibre blanket 50mm is particularly popular due to its optimal balance between insulation performance and ease of installation. It provides enhanced heat retention while remaining flexible enough for complex industrial applications. Kerui provides good quality, fast shipment and technical guidance.
- Classification Temperature: 1050-1430ºC/1922-2606°F;
- Bulk Density: 96-160kg/m³; 5-10lbs/cf;
- Length: 7200/3600mm/Customizable;
- Width: 600/610/1220mm/Customizable;
- Thickness: 50mm/Customizable;
- Document: MSDS supporting;
- Certificate: ISO9001/ISO14001/OHSAS18001/CE/SGS;
- Shipment: 7-15 working days;
Parameters of Ceramic Fibre Blanket 50mm
The ceramic fibre blanket 50mm is manufactured from high-purity alumina-silicate fibres with minimal shot content (low slag ball content), ensuring durability and consistent thermal performance.
| Item | Common Type | Standard Type | High Purity Type | High Alumina Type | Zirconium Containing Type |
|---|---|---|---|---|---|
| Classification Temperature, ℃ | 1050 | 1260 | 1260 | 1350 | 1430 |
| Service Temperature, ℃ | <1000 | 1050 | 1100 | 1200 | 1350 |
| Bulk & Density, kg/m³ | 96-128 | 96-128 | 96-128 | 128-160 | 128-160 |
| Permanent Liner Change, % | -4 (1000℃) | -3 (1000℃) | -3 (1100℃) | -3 (1250℃) | -3 (1350℃) |
| Heat Conductivity Coefficient, W/(m·k) (Bulk Density 128kg/m³) | 0.09 (400℃) 0.176 (800℃) | 0.09 (400℃) 0.176 (800℃) | 0.09 (400℃) 0.176 (800℃) 0.22 (1000℃) | 0.132 (600℃) 0.22 (1000℃) | 0.76 (800℃) 0.20 (1000℃) |
| Strength of Extension, Mpa | 0.08-0.12 | ||||
| Al2O3, % | 44 | 46 | 47-49 | 52-55 | 39-40 |
| Al2O3+SiO2, % | 96 | 97 | 99 | 99 | - |
| Al2O3+SiO2+ZrO2, % | - | - | - | - | 99 |
| ZrO2, % | - | - | - | - | 15~17 |
| Fe2O3, % | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 |
| Na2O+K2O, % | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 |
| Size, mm | Standard Size: 7200/3600*610/1220*6-60; Customized Sizes | ||||
Key Features of Kerui Ceramic Blanket 50mm
- Exceptional Heat Resistance
Withstands continuous temperatures up to 1260°C (standard grade) and 1400°C (high-purity grade). - Superior Thermal Insulation
Low thermal conductivity (0.12 W/m·K at 600°C) minimizes heat loss. It improves energy efficiency. - Lightweight & Flexible
Easily cut, wrapped, or shaped around complex geometries (pipes, ducts, irregular surfaces). - Thermal Shock Resistance
Rapid heating/cooling cycles do not cause cracking—unlike brittle refractory materials. - Chemical Stability
Resistant to acids, alkalis, and corrosive gases. It is suitable for harsh industrial environments. - Easy Installation & Handling
Can be installed using anchoring pins, layering, or modular assembly—no specialized tools required. - Eco-Friendly
Low bio-persistence fibers ensure safer handling. This ceramic fiber blanket is help to reduce carbon footprint by lowering energy consumption.
Video of Kerui Fiber Blanket 50mm
Kerui fiber blanket 50mm is a high-temperature-resistant insulation solution for industrial and construction use. Made with advanced fiber-spinning technology, it offers excellent thermal and acoustic performance. And it is available in standard and high-density options, with customizable sizes. Each blanket is securely packaged for safe delivery, and we offer fast global shipping.
Typical Applications of Ceramic Fiber Blanket 50mm
- Metallurgical Industry
Ladle & furnace linings (steel, aluminum, copper melting).
Heat treatment furnaces (annealing, tempering). - Petrochemical & Refining
Cracking furnaces, reactors, and pipelines insulation.
Flue gas ducting in refineries. - Power Generation
Boiler insulation (walls, headers, exhaust systems).
Gas turbine heat shields. - Cement & Glass Manufacturing
Kiln expansion joints (prevents heat leakage).
Glass melting furnaces (prolongs lining life).
Fibre Insulation Blanket 50mm VS Thinner/Thicker Options
| Thickness | Best For | Pros | Cons |
| 25mm | Moderate heat retention, space-constrained areas | Lightweight, cost-effective | Lower insulation efficiency |
| 50mm | High-heat industrial furnaces, boilers | Optimal balance of insulation & flexibility | Slightly higher cost than 25mm |
| 75mm | Extreme-temperature applications (e.g., steel plants) | Maximum heat resistance | Bulkier, harder to shape |
Global Customers
Kerui’s ceramic fibre blankets are trusted by industries worldwide, with a 70% repeat purchase rate due to their reliability and performance. Customers report easier maintenance, longer service life, and reduced downtime compared to traditional refractory solutions.
Conclusion
The Ceramic Fibre Blanket 50mm is a versatile, energy-efficient, and durable insulation solution for high-temperature industries. Its lightweight design, ease of installation, and resistance to thermal shock make it a superior alternative to insulation refractory bricks. For applications requiring optimal heat retention without excessive thickness, the 50mm variant delivers the perfect balance of performance and cost-effectiveness. Take a look at more videos on YouTube.
