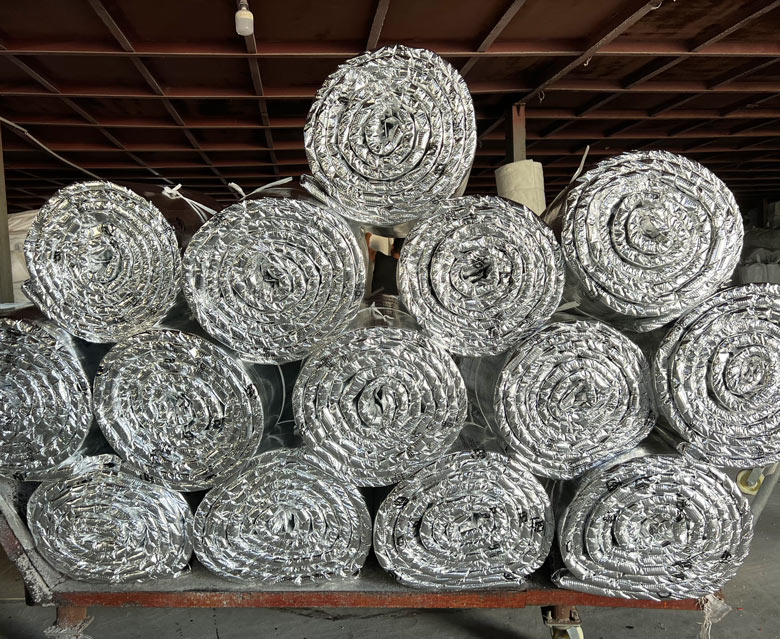

Ceramic Fiber Blanket with Foil

Ceramic fiber blanket with foil facing is advanced thermal insulation materials designed to provide exceptional heat resistance and durability in high-temperature applications. The foil facing enhances their resistance to abrasion and reduces fiber shedding. This makes them suitable for demanding industrial environments. Kerui blankets have been applied to 50+ countries.

Free Sample:
Available

Document:
MSDS supporting

Performance Test:
Support

Shipment:
7-15 working days

Made in China

Leave Message Send Email

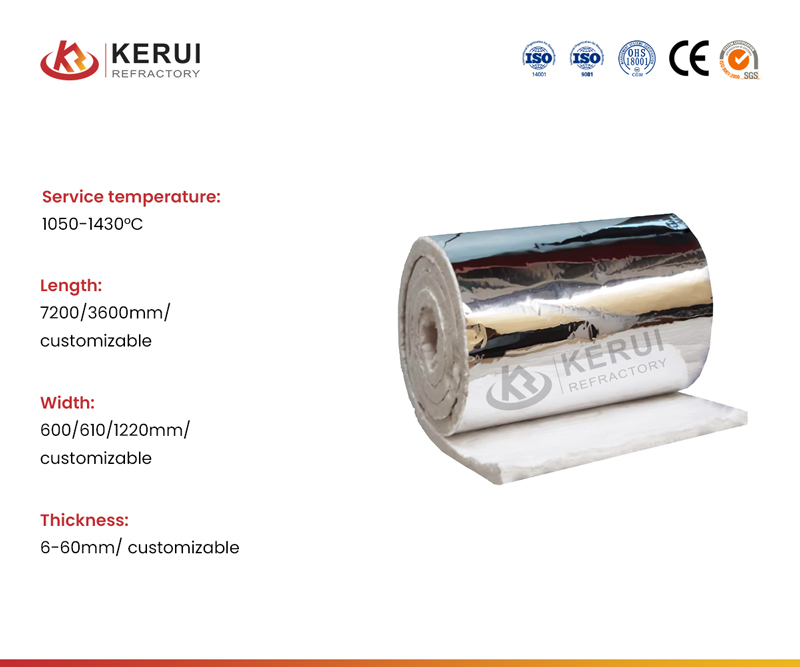

Parameters of Kerui Foil Faced Ceramic Blanket for Sale

Item	Common Type	Standard Type	High Purity Type	High Alumina Type	Zirconium Containing Type
Classification Temperature, ℃	1050	1260	1260	1350	1430
Service Temperature, ℃	<1000	1050	1100	1200	1350
Bulk & Density, kg/m³	96-128	96-128	96-128	128-160	128-160
Permanent Liner Change, %	-4 (1000℃)	-3 (1000℃)	-3 (1100℃)	-3 (1250℃)	-3 (1350℃)
Heat Conductivity Coefficient, W/(m·k) (Bulk Density 128kg/m³)	0.09 (400℃) 0.176 (800℃)	0.09 (400℃) 0.176 (800℃)	0.09 (400℃) 0.176 (800℃) 0.22 (1000℃)	0.132 (600℃) 0.22 (1000℃)	0.76 (800℃) 0.20 (1000℃)
Strength of Extension, Mpa	0.08-0.12
Al₂O₃, %	44	46	47-49	52-55	39-40
Al₂O₃+SiO₂, %	96	97	99	99	-
Al₂O₃+SiO₂+ZrO₂, %	-	-	-	-	99
ZrO₂, %	-	-	-	-	15~17
Fe₂O₃, %	<1.2	<1.0	0.2	0.2	0.2
Na₂O+K₂O, %	≤0.5	≤0.5	0.2	0.2	0.2
Size, mm	Standard Size: 7200/3600610/12206-60; Customized Sizes

Note: Asbestos Free.

Types of Aluminum Foil Faced Ceramic Fiber Blanket

Kerui provides two specialized foil-faced ceramic fiber blankets. Each type delivers distinct protective solutions for unique industrial requirements.

Single-Sided Aluminum Foil Ceramic Fiber Blanket: Features aluminum foil reinforcement on one surface only.
Double-Sided Aluminum Foil Ceramic Fiber Blanket: Encases ceramic fiber core with dual foil barriers.

Optimized Packaging & Pricing of Aluminium Foil Faced Ceramic Insulation Blanket

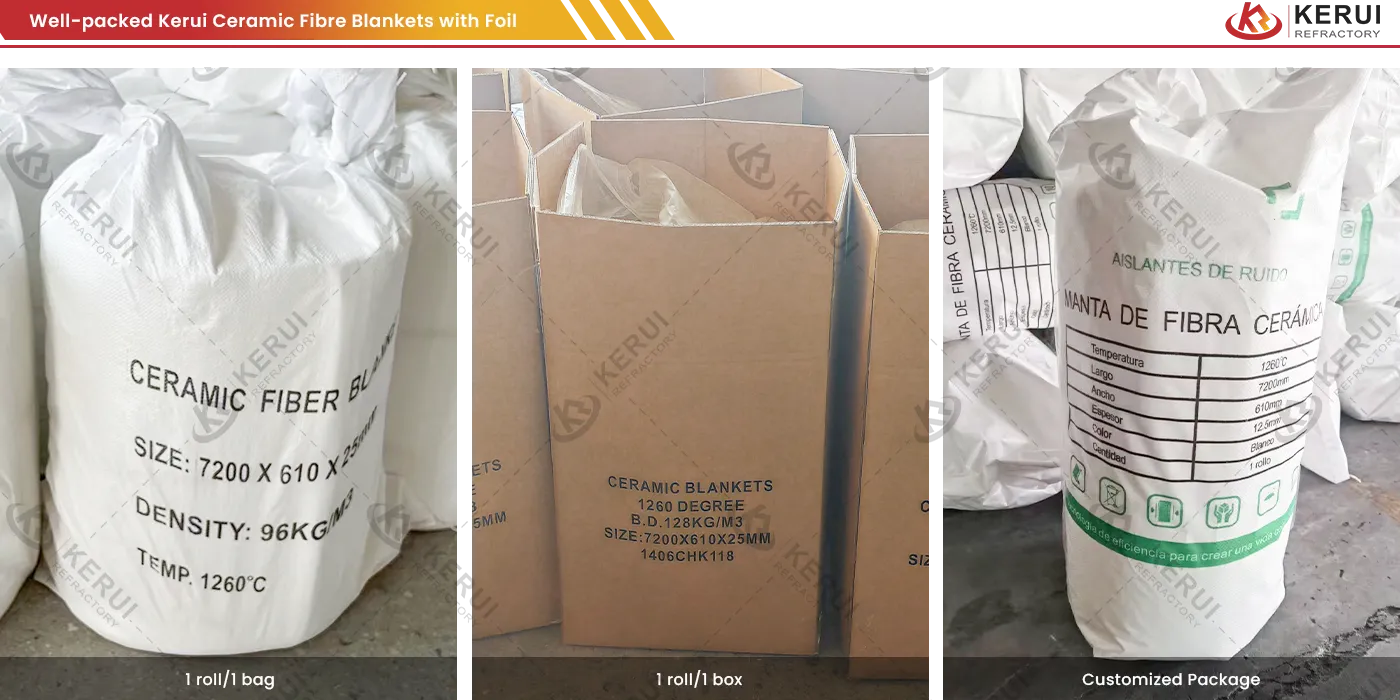

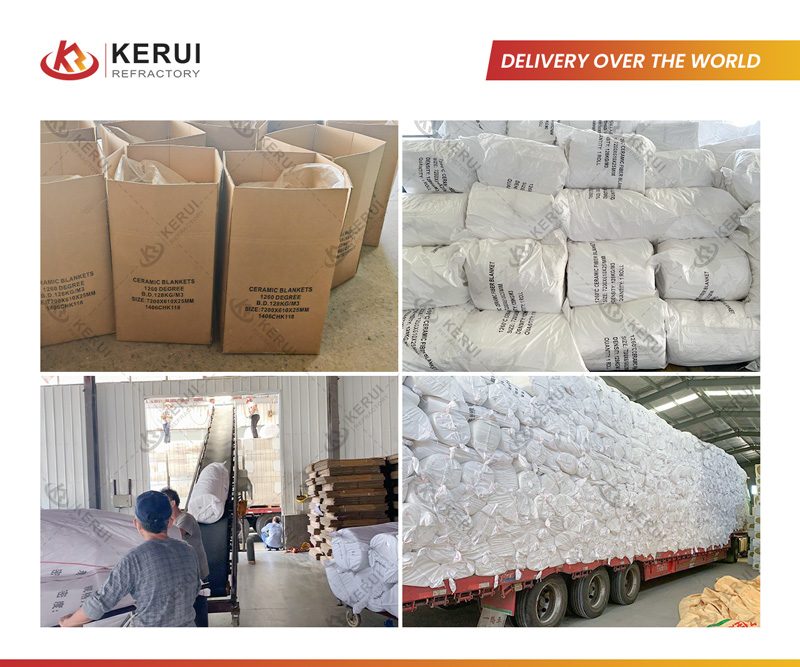

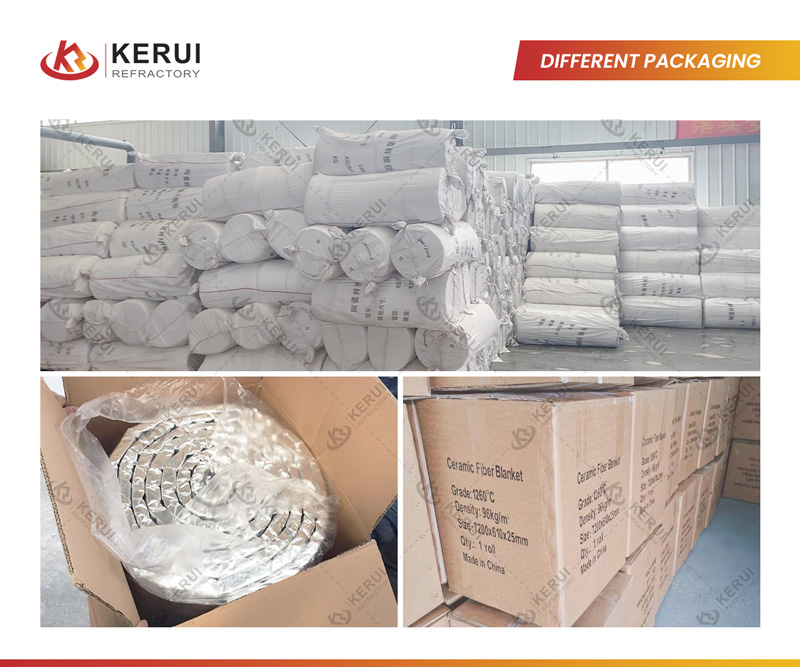

Packaging Options

・Standard: 1 roll/bag; 1 roll/box;
・High-Volume: 2 rolls/bag (pallet-optimized);
・Custom configurations available upon request;

Value Advantage

Factory-direct pricing;
Transparent freight quotes (provided post-dimension/weight confirmation);
Volume discounts for bulk orders.

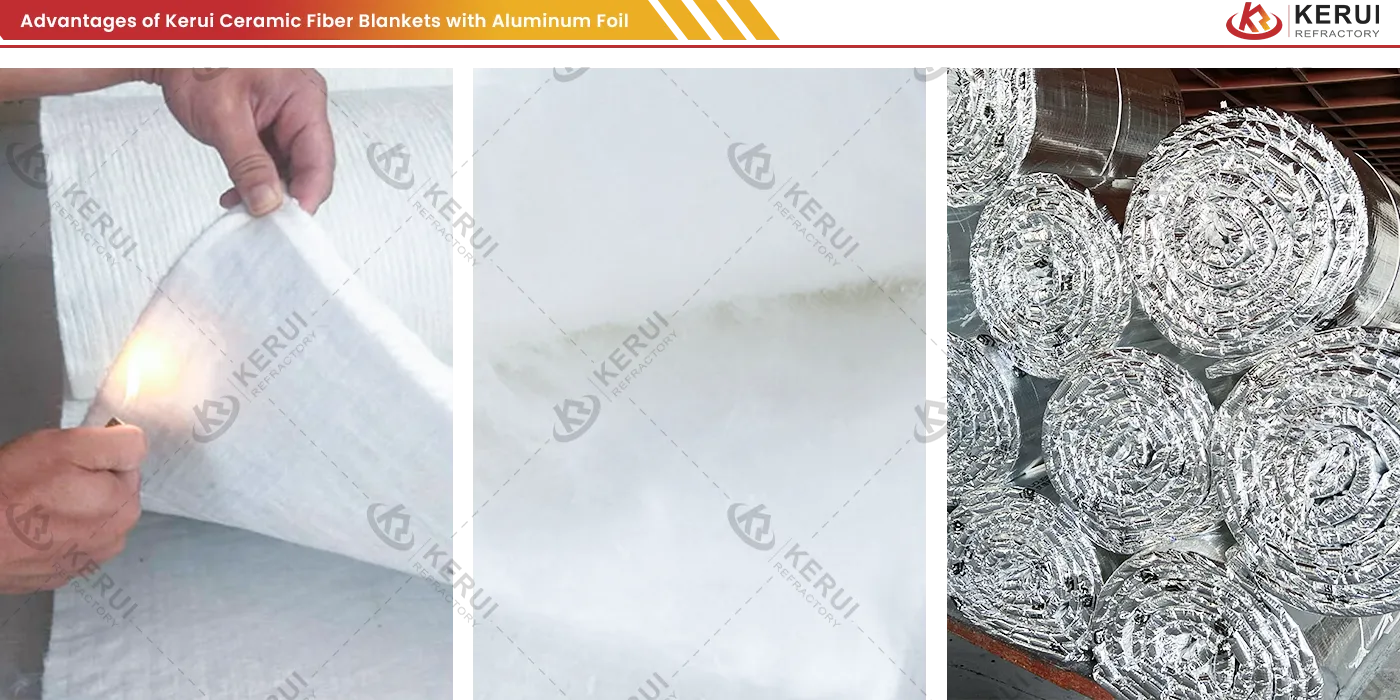

Key Features of Kerui Ceramic Fiber Blankets with Aluminum Foil

High Temperature Resistance

This ceramic fiber product withstands continuous service temperatures reaching 1430°C.

Low Thermal Conductivity

This material delivers excellent thermal insulation, minimizing heat loss and boosting energy efficiency.

Enhanced Durability

An aluminum foil facing adds protective strength against physical wear and environmental hazards.

Lightweight and Flexible

Its low weight simplifies handling and installation. Flexibility ensures adaptation to diverse shapes and spaces.

Thermal Shock Resistance

The material resists chemical corrosion and rapid temperature shifts, guaranteeing reliable long-term performance in harsh conditions.

Non-Toxic Composition

Contains no hazardous materials, ensuring safe handling and installation.

ApplicatIons of Kerui Ceramic Fiber Blankets with Aluminum Foil

Furnace and Kiln Linings

Enables the construction/maintenance of high-temperature furnaces and kilns. Maintains extreme heat and shields structural components.

Boilers and Reformers

Insulates critical equipment. Boosts energy efficiency and operational safety.

Fire Protection Systems

Provides passive fire resistance across industrial environments.

Gas Turbines and Steam Generators

Delivers thermal protection. Optimizes performance and extends service life.

High-Temperature Pipe Insulation

Wraps industrial piping. Prevents heat loss and blocks external heat transfer.

Investment Casting Mold Wrapping

Insulates precision molds. Ensures stable temperatures during metal casting processes.
