During the construction and maintenance of industrial kilns and furnaces, novice procurement teams and inexperienced masonry contractors often fall into a fatal logical trap: “Since refractory cement (calcium aluminate cement) has such high structural strength, why can’t we just use it directly to lay refractory bricks? Wouldn’t the wall be stronger?”
As a leading brand servicing the global high-temperature industry, Kerui Refractory wants to make this engineering rule absolutely clear: Refractory cement must NEVER be used as a substitute for refractory mortar when laying bricks.
Forcing the use of cement or mixing it into mortar will cause the furnace lining to rapidly collapse, severely crack, and potentially trigger disastrous safety incidents at high temperatures.
1. The Role of Refractory Mortar
Refractory mortar (often called fireclay mortar) is a highly specialized jointing material designed exclusively for laying shaped refractory bricks. According to standard industrial furnace masonry codes, the thickness of a brick joint is strictly limited to 1mm to 2mm.
This thickness is not an arbitrary number; it is the “Golden Balance” calculated after weighing four critical engineering dimensions. Simply put: if the joint is too thick, it is dangerous; if it is too thin, it is useless.
- Structural Load-Bearing (Brick-to-Brick Contact): The refractory bricks themselves are the load-bearing structures. Mortar is simply a medium for filling gaps and leveling, not a structural “glue.” A 1-2mm joint ensures the microscopic unevenness of the bricks interlock, transferring pressure directly from brick to brick (ceramic bonding). If the joint is too thick, the mortar acts as a “soft sandwich” that deforms and crushes under high-heat pressure, causing the wall to sink.
- Thermal Expansion Synergy (Breathing Together): Refractory bricks and mortar have slightly different linear expansion coefficients. The 1-2mm safety zone allows the mortar to be safely compressed when the bricks expand at high temperatures. If the joint is too thick, the massive expansion difference will literally tear the bricks apart (known as “expansion extrusion”).
- Erosion Resistance (Sealing the Passageway): The joint is always the weakest link in a furnace lining. Only an extremely thin joint can rapidly sinter at high temperatures to form a dense “ceramic bond.” A thick joint allows corrosive slag or aggressive gases to penetrate deep into the capillaries of the mortar, hollowing it out and causing bricks to fall out.
- Construction Practicality: Standard refractory bricks have a dimensional tolerance of ±0.5mm to ±1mm. A 1-2mm joint perfectly offsets this manufacturing variance, allowing the mason to tap the brick flush with a rubber mallet without the brick “floating” on too much mud.
2. Mortar vs. Castable vs. Cement
To understand why these materials cannot be mixed, you must first understand their true identities. Review the technical comparison matrix below:
| Comparison Item | Refractory Mortar | Refractory Castable | Refractory Cement |
|---|---|---|---|
| Nature | The “Mortar” for laying bricks | The “Concrete” for pouring | The “Raw Material/Binder” for castables |

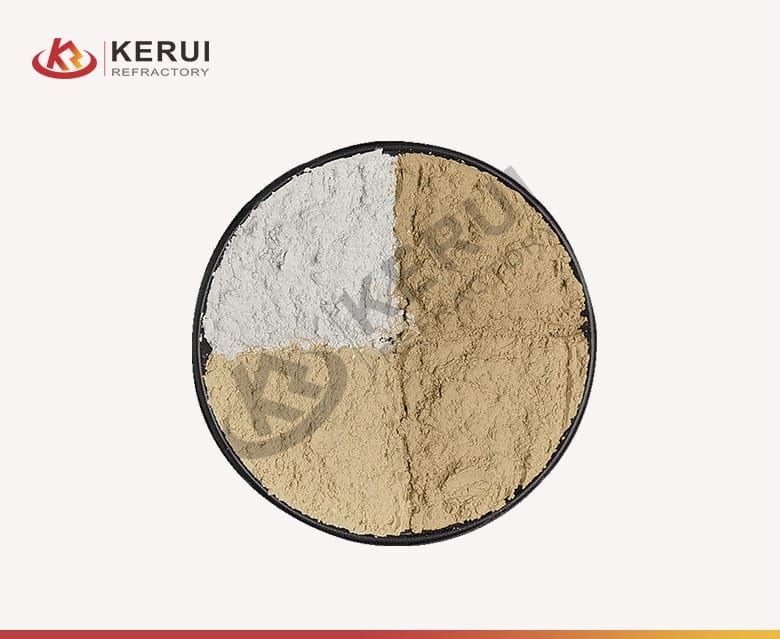

| Main Composition | Fine powder (same material as the brick) + Binder | Aggregates (large particles) + Fine powder + Binder | Pure Calcium Aluminate (calcined bauxite + limestone) |
| Particle Fineness | Extremely Fine (< 1mm, often < 0.5mm) | Coarse (Aggregates can reach 5-10mm+) | Extremely Fine (Cement powder) |
| Bonding Method | Ceramic Bond (Sintered together by heat) | Hydraulic Bond (Gains strength via water reaction) | Acts as the binder itself when mixed with water |
| Core Application | Laying refractory bricks, filling joints | Monolithic furnace linings, custom shapes | Used as an ingredient to produce castables |
| High-Temp Volume | Stable, expands in sync with the brick | Experiences initial shrinkage upon first heating | N/A (Not used alone) |
3. Three Reasons Why You Can Never Mix or Substitute Them
Principle 1: Conflicting Design Functions
The design goal of refractory mortar is to undergo a solid-phase sintering reaction at high temperatures, physically fusing with the brick to form a ceramic bond. Conversely, refractory castables and cements are designed to generate extreme strength at room temperature through a hydraulic (water-based) reaction. One relies on “heat to become strong,” while the other relies on “water to become strong.” Their engineering paths are completely opposite.
Principle 2: Mismatched Particle Grading (Sand in Glue)
Refractory mortar requires ultra-fine particles to fill a microscopic 1-2mm gap. If you attempt to use a castable (which contains heavy aggregates up to 10mm) to lay bricks, it physically cannot fit into a thin joint. The mason is forced to make the joints dangerously thick, leading to uneven stress distribution and immediate cracking upon heating.
Principle 3: Volume Stability Conflicts
Qualified refractory bricks are pre-fired at the factory, making their volume extremely stable. However, refractory cement and castables experience significant dehydration and shrinkage during their first heat-up. If you use them between bricks, the result is disastrous: the brick does not shrink, but the joint shrinks massively. This pulls the joints apart, leaving gaping holes and loose bricks.
4. What Happens If Refractory Cement Is Added to the Mortar?
Some rogue masonry contractors, in a rush to make the wall dry faster and feel “solid” quickly at room temperature, will secretly mix refractory cement into the refractory mortar. This is equivalent to planting a time bomb in your industrial furnace. Here are the four stages of failure:
| Stage / Temperature | Visual Phenomenon | The Root Engineering Cause |
|---|---|---|
| Mixing Stage | Water demand spikes; the mortar becomes stiff and incredibly hard to trowel. | Cement has a massive surface area and rapidly absorbs water, destroying the mortar’s natural workability. |
| Room Temp Curing | Strength develops incredibly fast. The wall feels “rock solid” to the touch. | The cement undergoes a rapid hydration reaction. This creates a false illusion of high quality. |
| Initial Heat-Up (200-300°C) | Micro-cracks appear in the joints; localized spalling occurs. | Hydrated products rapidly lose their water. The trapped steam pressure causes “delamination” and cracking. |
| Operating Temp (600-1000°C+) | Joints crack, pulverize into dust, and the mortar softens. Bricks begin to fall out. | The cement reacts with the mortar components to form low-melting-point liquid phases. The mortar completely loses its load-bearing capacity. |
The Iron Law of Refractory Masonry:
“The stronger a modified mortar feels at room temperature, the faster it will fail at high temperatures.”
Engineering Advice
The safe and efficient operation of industrial kilns leaves no room for guesswork with materials. Refractory mortar, castables, and cement have distinct physical and chemical DNA. They each serve specific roles and must never be substituted for one another or randomly mixed.
