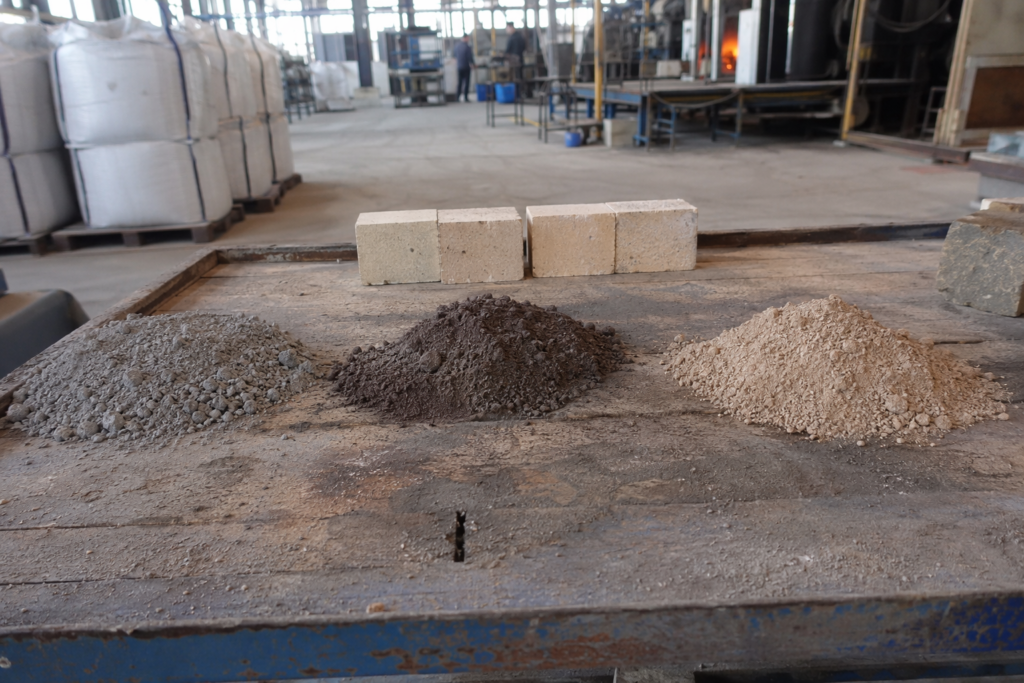

How to Choose the Right Refractory Mortar for Firebricks

In industrial masonry and high-temperature furnace construction, the selection of refractory mortar is frequently—and dangerously—overlooked by procurement teams. Many assume that mortar is just a generic “glue.” In reality, the mortar joint is always the weakest link in any refractory lining.

As veteran refractory engineers, we have seen countless monolithic failures caused by mismatched materials. To protect your investment and ensure structural integrity, you must follow these three definitive rules when selecting and applying refractory mortar.

Rule #1: Match the Chemistry (Absolute Compatibility)

The first law of high-temperature thermodynamics is simple: do not mix incompatible chemicals. At extreme temperatures, mismatched bricks and mortars will act as fluxes for one another, triggering a violent chemical reaction that literally melts the wall down into a liquid slag.

• Acidic with Acidic: If you are laying Silica bricks (highly acidic), you absolutely must use a silica-based refractory mortar. Introducing a basic mortar here will destroy the lining.
• Basic with Basic: Magnesia or Magnesia-Carbon bricks (highly basic) are heavily utilized in steelmaking to resist basic slags. They require a high-purity magnesia refractory mortar to maintain the chemical shield.
• Neutral with Neutral: For standard Fireclay bricks and High-Alumina bricks, you must select an alumina-silicate mortar.

Quick Reference: Refractory Mortar Selection Matrix

To prevent chemical fluxing at extreme temperatures, always use this standard matching matrix when pairing your firebricks with refractory mortar:

Rule #2: Select the Right Setting Mechanism

Not all mortars cure the same way. Buying the wrong setting type is the most common mistake made by beginners and contractors. Refractory mortars are categorized into three distinct binding mechanisms:

1. Air-Setting Mortar

Also known as air-drying mortar, this material achieves an incredibly strong, rigid bond simply by drying at room temperature (often utilizing sodium silicate as a chemical binder).
Best for: Most standard industrial kilns, indoor fireplaces, and applications where high mechanical strength is needed before the furnace is ever fired.

2. Heat-Setting Mortar (Ceramic Bond)

This mortar has very little strength at room temperature. It only achieves its true structural integrity when exposed to extreme heat (typically above 1000°C), where the fine powders undergo solid-phase sintering to form a solid “ceramic bond” directly with the firebrick.
Best for: Continuously operating, ultra-high-temperature environments like glass melting furnaces and steel ladles.

3. Hydraulic-Setting Mortar

This comes as a dry powder. Once mixed with water, it undergoes a chemical hydration reaction and cures exactly like standard Portland cement. Crucially, once it cures, it is water-insoluble.
Best for: Outdoor applications! If you are building an outdoor pizza oven, fire pit, or exterior incinerator, you must use a hydraulic-setting mortar. If you use an air-setting mortar outdoors, the first heavy rainstorm will completely wash the mortar out of the joints.

Rule #3: The “1-2mm Joint” Thickness Rule

Many novice masons treat refractory mortar like standard building cement, slathering on thick layers. This is a fatal structural error.

Why Thin is Better: Refractory mortar is not designed to bear structural loads. The firebricks are the load-bearing elements. The sole purpose of the mortar is to fill the microscopic unevenness on the brick surfaces, ensuring a flush fit and sealing off pathways where corrosive hot gases could penetrate.

The Danger of Thick Joints: Standard industrial masonry codes mandate a joint thickness of strictly 1mm to 2mm. If the joint exceeds 3mm, the mortar will undergo severe shrinkage at high temperatures. This causes the heavy firebricks to sink, pulling the joints apart, which ultimately leads to massive spalling and structural collapse.

Mortar Recommendations by Industrial Furnace Type

If you are unsure of your exact brick chemistry but know your furnace application, here are the standard engineering recommendations for critical industrial zones:

• Cement Rotary Kilns (Burning Zone): The intense mechanical stress and chemical attack from cement clinker require a highly basic environment. Magnesia-Spinel mortar is heavily recommended here to ensure joint stability under rotation.
• Glass Melting Furnaces (Crowns): Glass vapor is highly corrosive. The crown is typically constructed of silica bricks, which absolutely mandate a premium Siliceous heat-setting mortar to prevent the roof from dripping silica-glass into the bath.
• Steel Refining Ladles (Slag Line): This zone faces the most aggressive basic slag attack in the steelmaking process. You must use a high-purity Magnesia or Magnesia-Carbon mortar to prevent joint wash-out and subsequent metal breakouts.
• Industrial Incinerators & Boilers: These environments face rapid thermal cycling and abrasive fly ash. A robust, air-setting High-Alumina mortar is usually preferred for its excellent mechanical strength and resistance to abrasion.

Troubleshooting: 3 Common Mortar Failures

If your refractory mortar is failing, it is likely due to one of these three installation errors:

• Failure 1: Efflorescence (White powdery residue on joints)
  Cause: The mason soaked the firebricks in a bucket of water before laying them. Unlike porous red clay bricks, firebricks should never be submerged. Over-soaking dissolves water-soluble chemical binders, pushing salts to the surface and destroying the mortar’s bonding strength. (Bricks should only be lightly misted if dusty).
• Failure 2: Mortar Crumbling and Falling Out
  Cause: The mix was prepared with far too much water in an attempt to make it easier to trowel. Excess water increases porosity and slashes compressive strength. Alternatively, the ambient temperature during installation dropped below 5°C (41°F), preventing the chemical binders from activating.
• Failure 3: Mortar Washing Away (Outdoors)
  Cause: You incorrectly used a pre-mixed, water-soluble air-setting mortar on an outdoor project instead of a hydraulic-setting mortar.

Frequently Asked Questions (FAQ)

Can I use refractory cement (castable) instead of refractory mortar?

Absolutely not. Refractory cement (castable) contains large, coarse aggregate particles (up to 5-10mm). It is physically impossible to compress a castable into the required 1-2mm thin joint. Forcing it between bricks will cause extreme stress points and immediate cracking upon heat-up.

How much refractory mortar do I need per firebrick?

As a general industry rule of thumb, assuming a professional 1/16-inch (approx. 1.5mm) joint, a standard 50-pound (22.5kg) bucket or bag of dry refractory mortar will yield enough material to lay approximately 80 to 100 standard-sized firebricks.

How long should refractory mortar cure before lighting a fire?

For air-setting and hydraulic mortars, you must allow the masonry to naturally air-dry at room temperature for at least 7 to 10 days. After this, you cannot simply light a massive fire. You must execute a highly controlled, slow step-heating schedule (Bake-out) to allow trapped internal moisture to safely evaporate. Rapid heating will turn that moisture into steam, violently blowing the mortar out of the joints.
